Steel Side Extension for Ingredient Storage in South Shields
Simply Food Solutions are one of the main Halal food suppliers to the NHS. They needed somewhere to store ingredients before they go into production, so we designed and built a steel side extension onto their existing unit on an industrial estate in South Shields.
A Site That Never Stops
The site runs 24 hours a day, and the busy staff canteen looks straight out over where the extension was going. The work also had to go in around existing services and machinery, so the design had to be accurate from the start.
Because the extension stores food, we built a watertight concrete plinth and put in specialist flooring. The 25m x 7.5m cold rolled steel frame, with 4.7m eaves, was then put up by our installation team.
Matching the Existing Units

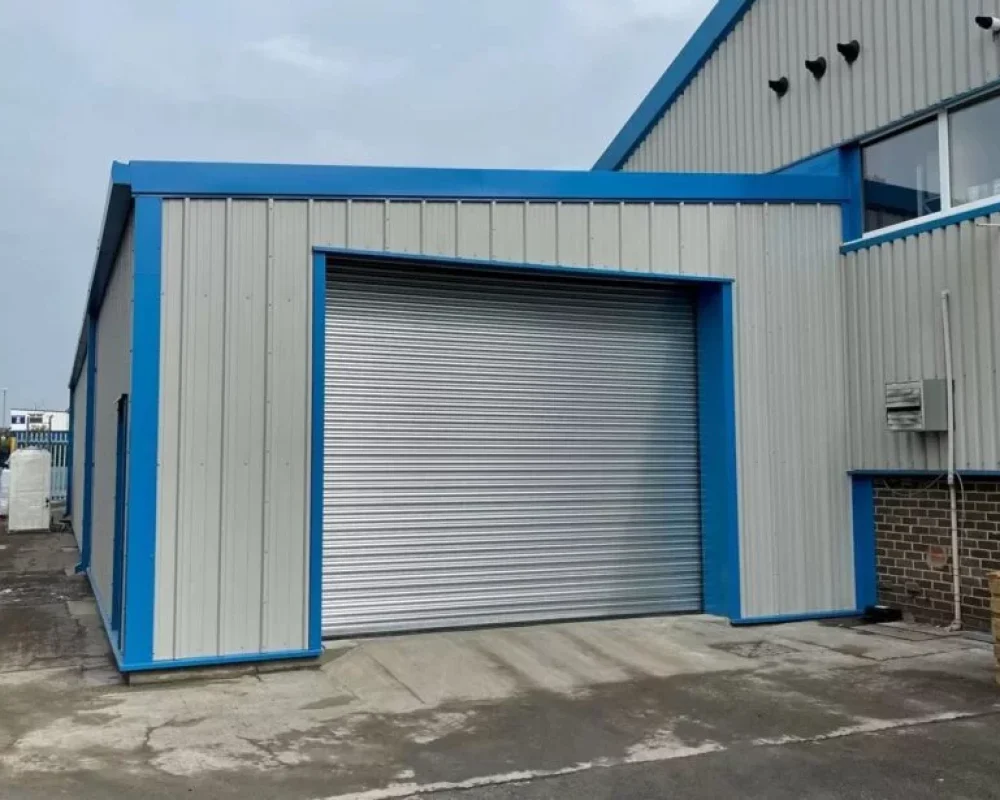

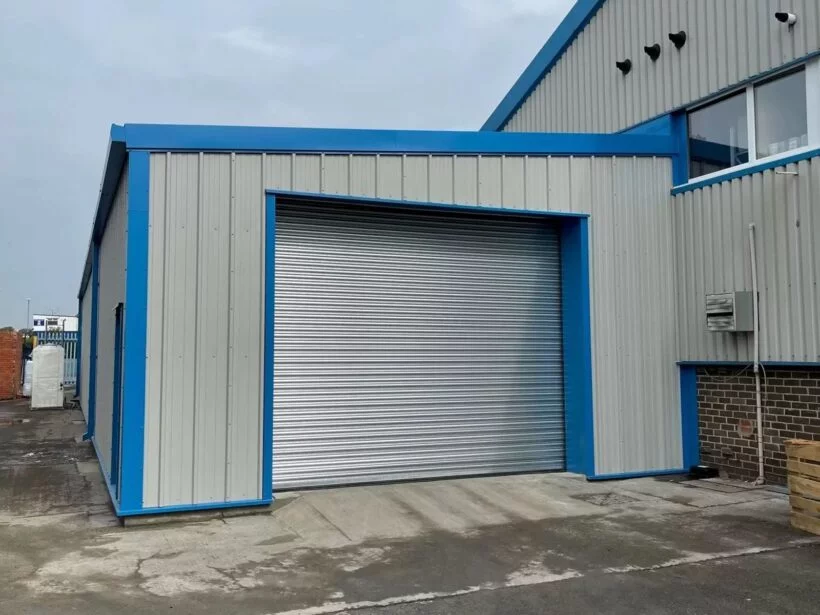

The extension is clad in KS1000rw composite panels in Goosewing Grey, with a cornflower blue trim so it matches the rest of the site.
Watch the Project
Project Details
| Client | Simply Food Solutions Ltd |
| Location | South Shields |
| Project Type | Steel side extension for ingredient storage |
| Frame | Cold rolled steel |
| Building Dimensions | 25m x 7.5m x 4.7m |
| Floor Area | 187.5m² |
| Cladding Specification | KS1000rw Composite Cladding |
| Cladding Colour | Goosewing Grey with cornflower blue trim |
| Groundwork | Watertight concrete plinth with specialist flooring |
