BIFFA POLYMERS

Steel building with open bay for Biffa Polymers

Hot Rolled Skip Storage Building in Seaham

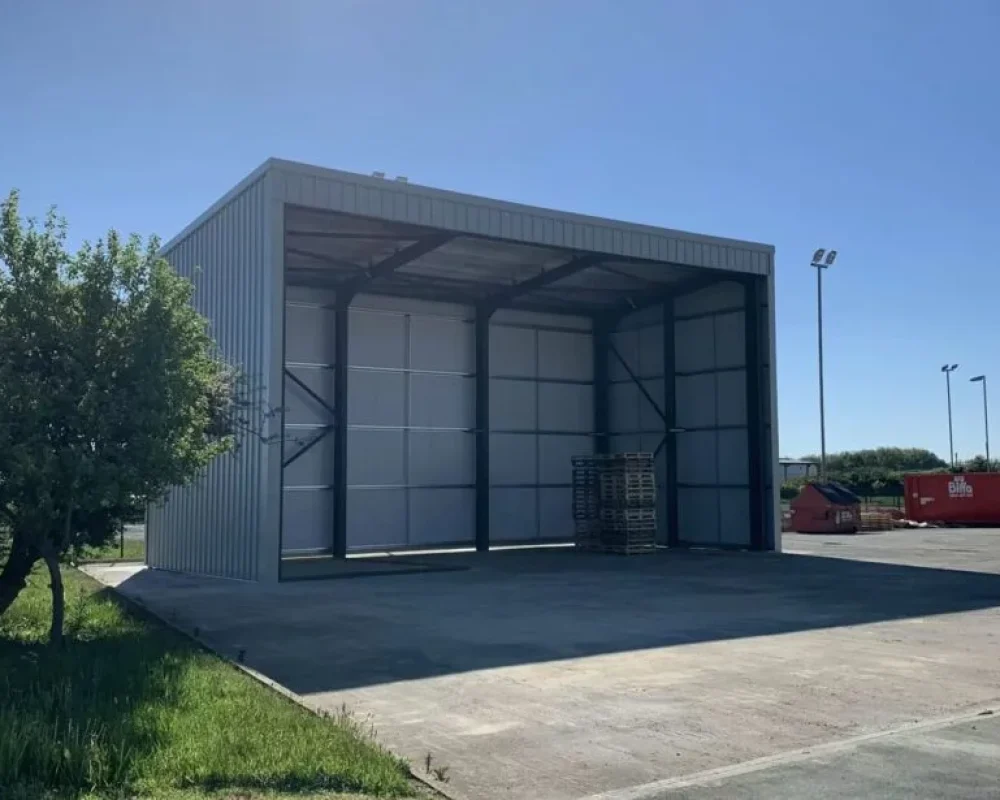

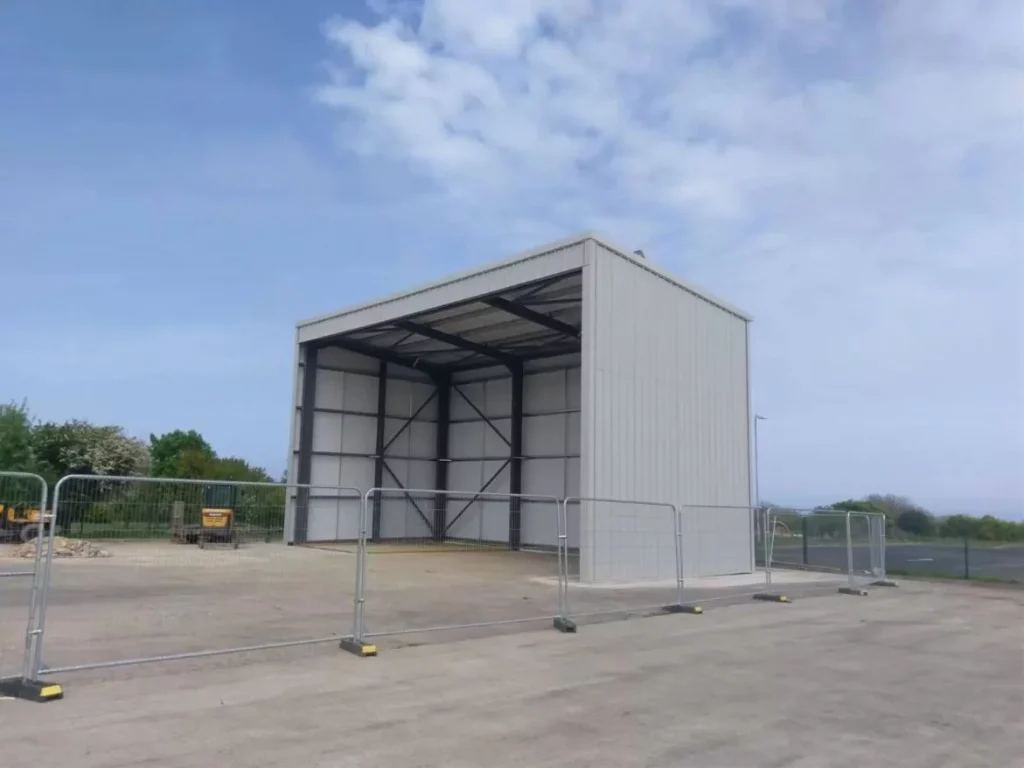

As part of Biffa Polymers‘ multi-million-pound development in Seaham, we were asked to design, supply and install a building to house a number of commercial skips.

The building needed to be tall, at 9.1m, so we designed it in hot rolled steel as a mono pitch structure. It’s 16m x 8m and clad in KS1000rw 40mm composite panels in Goosewing Grey, with one side left open so the skips can be moved in and out.

Foundations Sized to the Steel

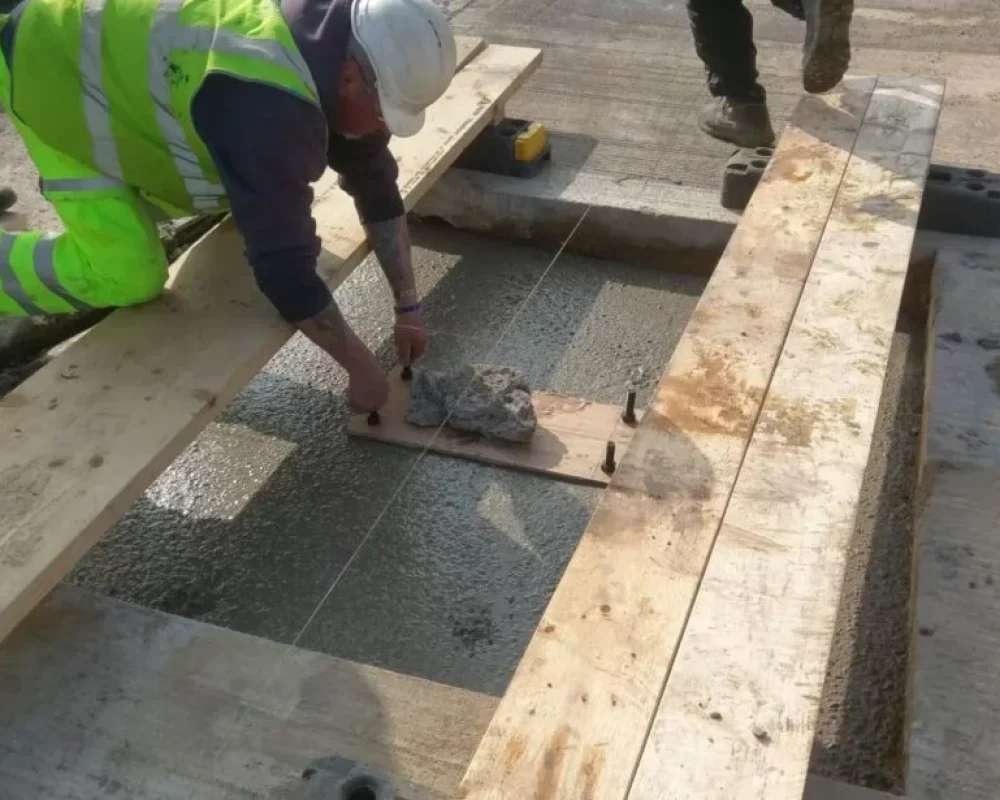

Our engineer designed the foundations from the steel structural calculations, so every column base was sized for the load it carries. The pads ranged from 1500mm x 1500mm x 650mm up to 2200mm x 2200mm x 1200mm. If you want to know more about how we work out foundations, see steel building foundations explained.

Project Details

ClientBiffa Polymers
LocationSeaham, County Durham
Project TypeIndustrial skip storage building
FrameHot rolled steel, mono pitch
Building Dimensions16m x 8m x 9.1m
Floor Area128m²
Cladding SpecificationKS1000rw 40mm Composite Cladding
Cladding ColourGoosewing Grey
FoundationsColumn base pads from 1500mm x 1500mm x 650mm to 2200mm x 2200mm x 1200mm
ScopeFull turnkey: design, supply and install
